M80-4000000F8-08-321-00-000

Datamate Mix-Tek Female Vertical Throughboard Connector, Reverse fix jackscrews + 3.5mm board mount, no signal contacts, 8 x 3.5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud (Reverse Fix)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight3.13g
Dimensions42.00 x 5.50 x 9.18

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

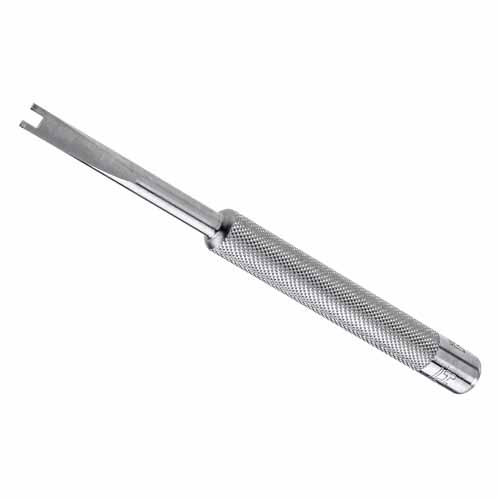

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

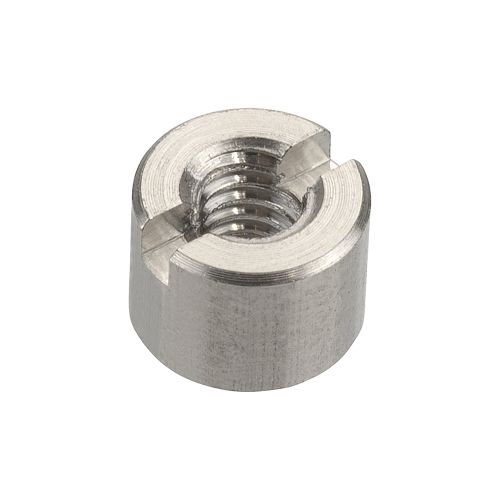

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5000000MA-08-338-00-000

 View Details
Image 1 Image 1

M80-273MA08-00-00

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F9-09-321-00-000

 View Details
