M80-4152098

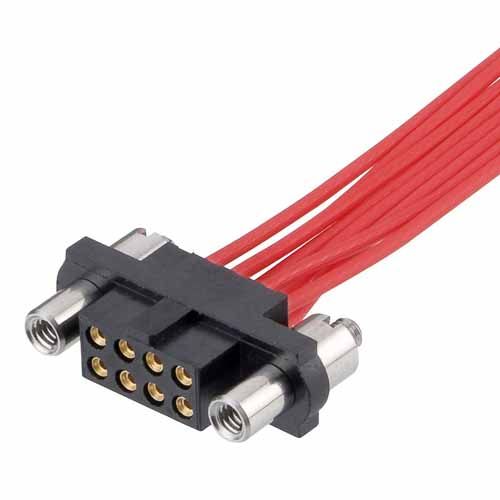

Datamate J-Tek DIL Female Crimp Connector Housing, reverse fix jackscrews with 3.5mm front panel mount studs, accepts 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
95 $4.666 $443.27 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts20
Current RatingDependent on assembled contacts
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud (Reverse Fix)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.459g
Dimensions30.00 x 5.50 x 9.20
End StackableNo
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-444

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details
Image 1 Image 1

M80-0130005

 View Details
Image 1 Image 1

M80-0190005

 View Details
Image 1 Image 1

M80-2060005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5622005

 View Details
Image 1 Image 1

M80-5632005

 View Details
Image 1 Image 1

M80-5822005

 View Details
Image 1 Image 1

M80-5832005

 View Details
Image 1 Image 1

M80-MC22068MA-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4622005

 View Details
