M80-4630642

Datamate J-Tek DIL Female Small Bore (24-28 AWG) Crimp Connector, gold clip + tin shell, with reverse fix jackscrews + front panel mount, 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $12.03 $601.5 Bulk/Loose
100 $11.32 $1132 Bulk/Loose
250 $10.5 $2625 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts6
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud (Reverse Fix)
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.736g
Dimensions16.00 x 5.50 x 9.20
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130001

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

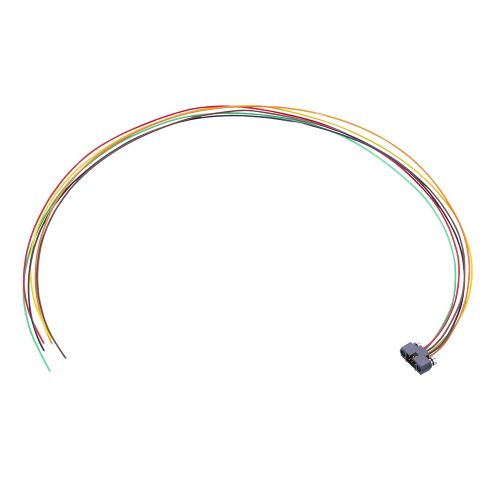

M80-MC20668MA-0450L
