M80-4D10805F3

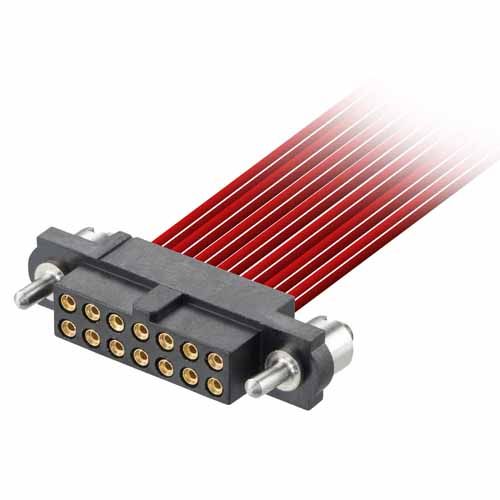

Datamate J-Tek DIL Female Large Bore (22 AWG) (22 AWG) Crimp Connector, gold clip + gold shell, Guide pin + 5mm front panel mount, 4+4 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleGuide Pin with Front Panel Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.786g
