M80-4D12605FC

Datamate J-Tek DIL Female Large Bore (22 AWG) Crimp Connector, gold clip + gold shell, with 101Lok fixings, 13+13 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $15 $750 Bulk/Loose
250 $14.78 $3695 Bulk/Loose
500 $14.35 $7175 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew Style101Lok Bayonet Fixing with Slotted Head
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight3.234g
Dimensions36.00 x 5.50 x 10.90

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

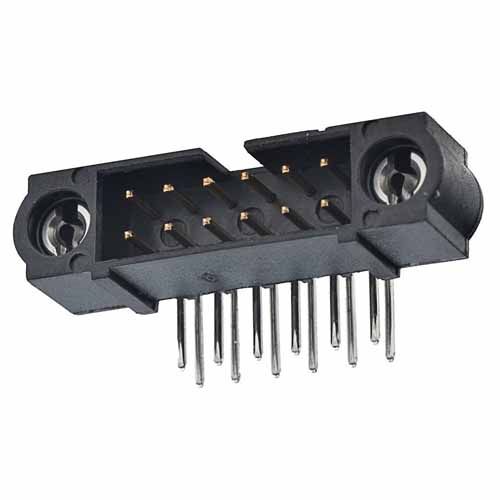

M80-5L12605MD

 View Details
Image 1 Image 1

M80-5L12642MC

 View Details
Image 1 Image 1

M80-5S12642ME

 View Details
Image 1 Image 1

M80-5S22642MC

 View Details
Image 1 Image 1

M80-5T12642MC

 View Details
Image 1 Image 1

M80-5T12642ME

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4D12642FC

 View Details
