M80-4E10642FC

Datamate J-Tek DIL Female Extra Small Bore (28-32 AWG) Crimp Connector, gold clip + tin shell, slotted head 101Lok bayonet-style fixings, 3+3 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size28-32 AWG
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew Style101Lok Bayonet Fixing with Slotted Head
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.318g
Dimensions16.00 x 5.50 x 10.90

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0190001

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5C10605MC

 View Details
Image 1 Image 1

M80-5D10605MC

 View Details
Image 1 Image 1

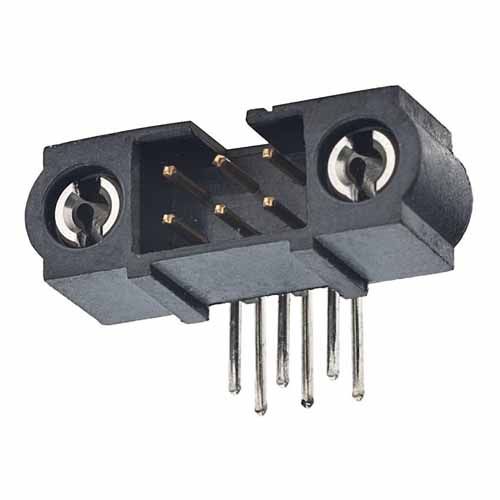

M80-5L10642MC

 View Details
Image 1 Image 1

M80-5L10642MD

 View Details
Image 1 Image 1

M80-5S10642MC

 View Details
Image 1 Image 1

M80-5S20642MD

 View Details
Image 1 Image 1

M80-5T10642MC

 View Details
Image 1 Image 1

M80-5T10642ME

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4E11242FC

 View Details
