M80-4T21642F3

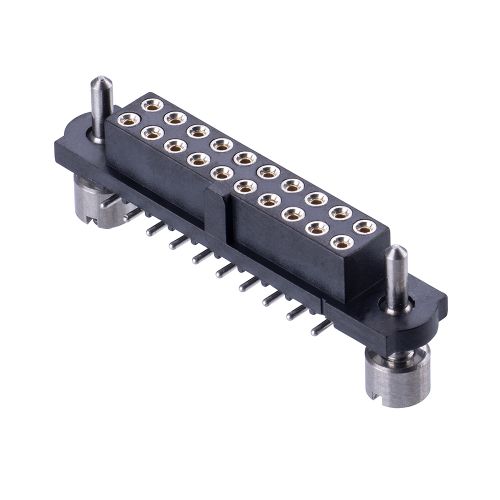

Datamate J-Tek DIL Female Vertical 4.5mm Throughboard Connector, gold clip + tin shell, guide pin with 5mm board mount jackscrews, 8+8 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleGuide Pin with Board Mount Stud (Standard Gender)
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.137g
Dimensions26.00 x 5.50 x 11.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver
