M80-5000000M1-02-PM3-00-000

Datamate Mix-Tek Male Horizontal Throughboard Connector, Jackscrews, no signal contacts, 2 x 3.5mm Throughboard High Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Current Rating40A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.805g
Dimensions18.00 x 7.55 x 9.50

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-263F102-00-00

 View Details
Image 1 Image 1

M80-263F202-00-00

 View Details
Image 1 Image 1

M80-263F302-00-00

 View Details
Image 1 Image 1

M80-400000000-02-PF1-00-000

 View Details
Image 1 Image 1

M80-400000000-02-PF5-00-000

 View Details
Image 1 Image 1

M80-4000000F1-02-PF1-00-000

 View Details
Image 1 Image 1

M80-4000000F1-02-PF2-00-000

 View Details
Image 1 Image 1

M80-4000000F1-02-PF3-00-000

 View Details
Image 1 Image 1

M80-4000000F1-02-PF4-00-000

 View Details
Image 1 Image 1

M80-4000000F1-02-PF5-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

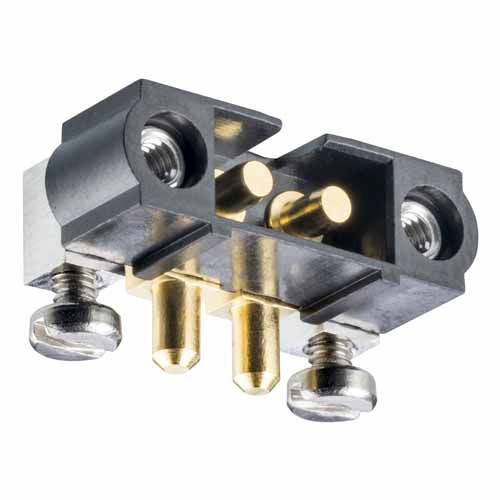

M80-5000000M5-02-PM3-00-000
