M80-5000000M2-09-331-00-000

Datamate Mix-Tek Male Vertical Throughboard Connector, Jackscrews + 3.5mm board mount, no signal contacts, 9 x 3.5mm Throughboard Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
120 $47.112 $5653.44 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight4.059g
Dimensions46.00 x 6.00 x 9.05
Above Board Height5.55mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

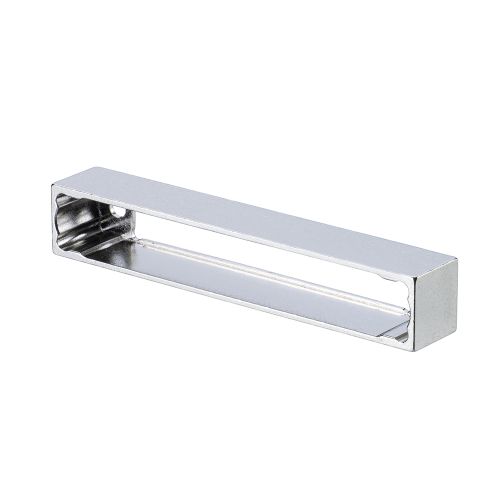

M80-9063602

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F2-09-329-00-000

 View Details
Image 1 Image 1

M80-4000000F5-09-327-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

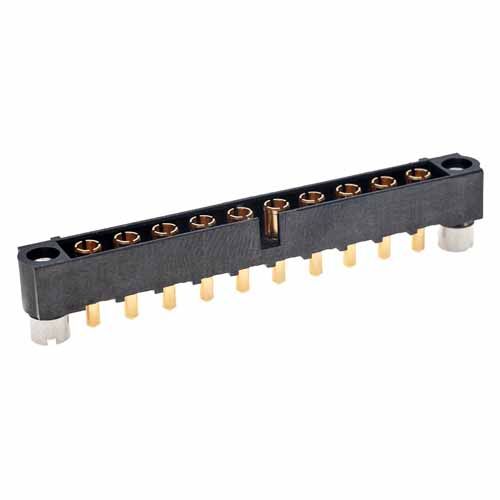

M80-5000000M2-10-331-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-5000000M1-10-331-00-000

View Details

M80-5000000M2-10-PM1-00-000

View Details

M80-5000000M3-10-331-00-000

View Details

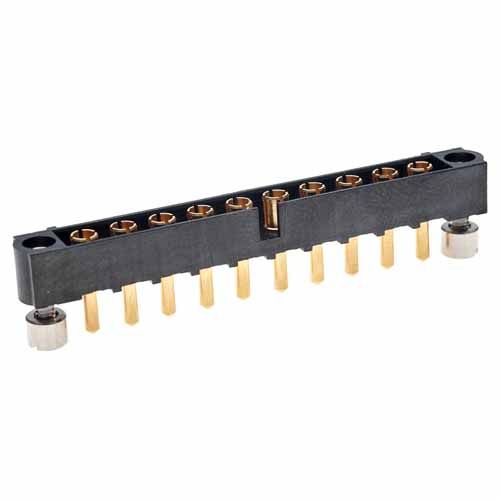

M80-5000000M3-10-332-00-000
