M80-5000000M3-12-331-00-000

Datamate Mix-Tek Male Vertical Throughboard Connector, Jackscrews + 5mm board mount, no signal contacts, 12 x 3.5mm Throughboard Power contacts

Download Datasheet Request Sample
In-Stock: 15
Factory Lead Time (wks): 20
All prices are in USD
SPQ: 4		 Quantity Unit Price Ext Price Packaging
120 $70.6 $8472 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight5.063g
Dimensions58.00 x 6.00 x 10.55
Above Board Height5.55mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

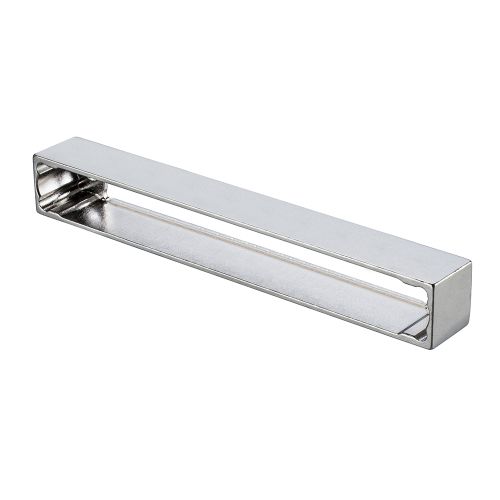

M80-9064802

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F1-12-325-00-000

 View Details
Image 1 Image 1

M80-4000000F1-12-329-00-000

 View Details
Image 1 Image 1

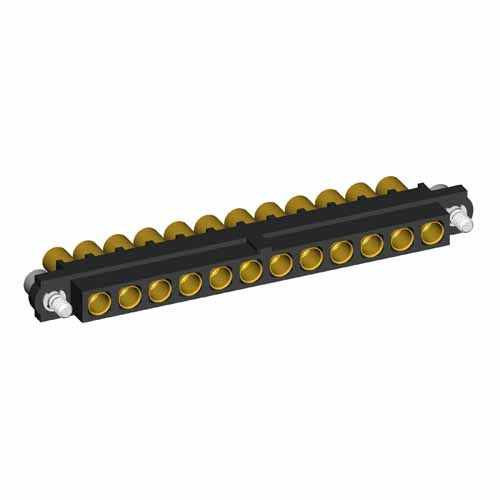

M80-4000000F2-12-325-00-000
