M80-5000000M5-03-333-00-000

Datamate Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 5mm board mount, no signal contacts, 3 x 3.5mm Throughboard Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 12		 Quantity Unit Price Ext Price Packaging
108 $47.76 $5158.08 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight3.257g
Dimensions22.00 x 8.60 x 9.50
Above Board Height6.00mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

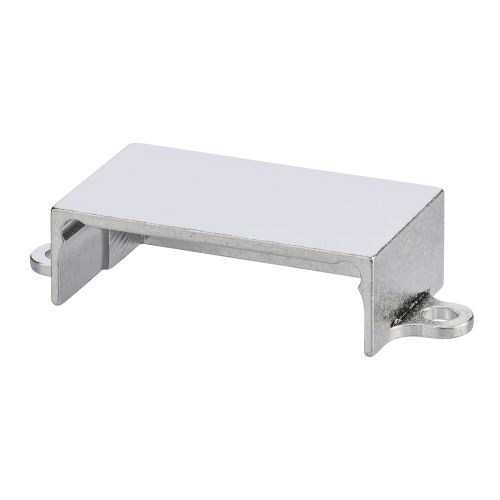

M80-9041202

 View Details
Image 1 Image 1

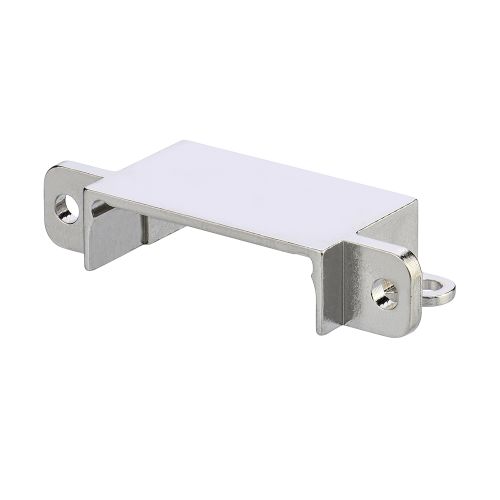

M80-9051202
