M80-5011422

Datamate J-Tek DIL Male Vertical 4.5mm Throughboard Connector, selective gold + tin/lead, with jackscrews, 7+7 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 11		 Quantity Unit Price Ext Price Packaging
506 $6.788 $3434.728 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishTin/Lead
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.182g
Dimensions24.00 x 6.00 x 9.95

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9411442

 View Details
Image 1 Image 1

M80-FE21468F2-0450L

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4801442

 View Details
Image 1 Image 1

M80-4E11442F1

 View Details
Image 1 Image 1

M80-4011442

 View Details
Image 1 Image 1

M80-4131498

 View Details
Image 1 Image 1

M80-4141498

 View Details
Image 1 Image 1

M80-4601442

 View Details
Image 1 Image 1

M80-4611442

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5011442

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

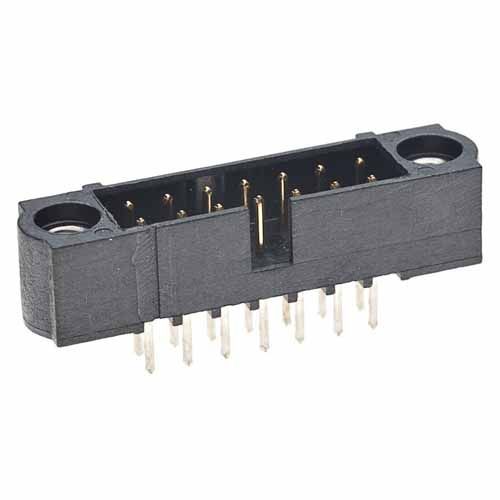

M80-5001422
