M80-5114205

Datamate J-Tek DIL Male Vertical 4.5mm Throughboard Connector, gold, with jackscrews + 5mm board mount, 21+21 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
1000 $13.239 $13239 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.871g
Dimensions52.00 x 6.00 x 10.55

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9064202

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4654205

 View Details
Image 1 Image 1

M80-4804205

 View Details
Image 1 Image 1

M80-4T24242F3

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4014242

 View Details
Image 1 Image 1

M80-4134298

 View Details
Image 1 Image 1

M80-4144298

 View Details
Image 1 Image 1

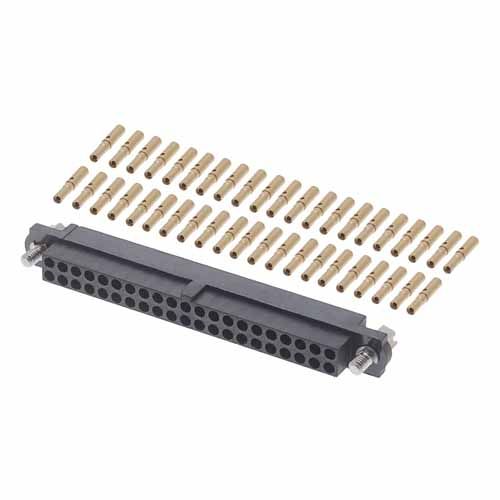

M80-4604205

 View Details
Image 1 Image 1

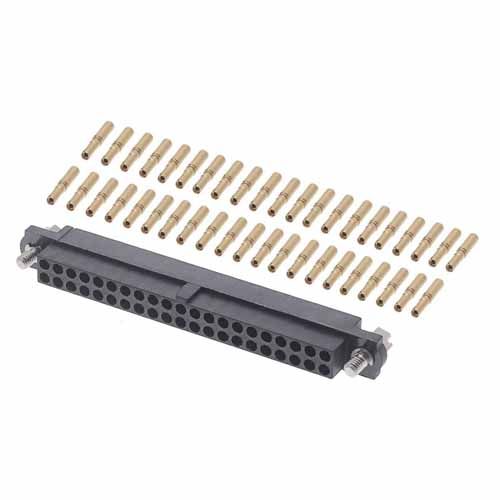

M80-4614205

 View Details
Image 1 Image 1

M80-9414205

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5114242

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download
