M80-5211605

Datamate J-Tek DIL Male Vertical 4.5mm Throughboard Connector, gold, no jackscrews, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 26
All prices are in USD
SPQ: 9		 Quantity Unit Price Ext Price Packaging
1008 $3.873 $3903.984 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleNone fitted
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.933g
Dimensions26.00 x 6.00 x 9.95

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4711605

 View Details

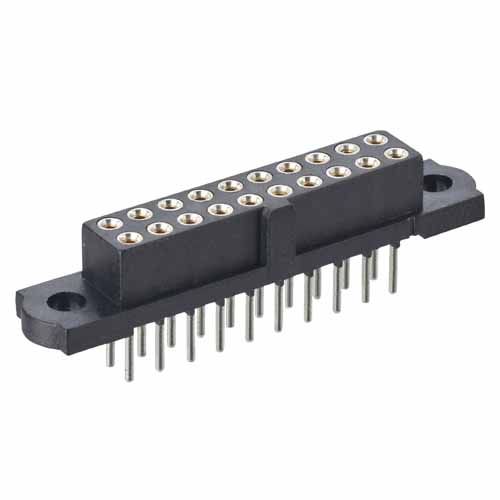

Image 1 Image 1

M80-4111605

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5211805

 View Details
