M80-5400605

Datamate J-Tek DIL Male Horizontal 3mm Throughboard Connector, gold, with jackscrews + 3.5mm board mount bolts, 3+3 contacts

Download Datasheet Request Sample
In-Stock: 2
Factory Lead Time (wks): 27
All prices are in USD
SPQ: 16		 Quantity Unit Price Ext Price Packaging
1024 $13.67 $13998.08 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts6
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.838g
Dimensions16.00 x 8.60 x 9.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9040602

 View Details
Image 1 Image 1

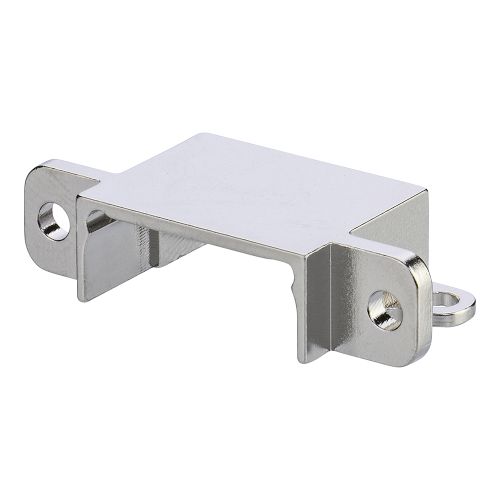

M80-9050602

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2260000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4800605

 View Details
Image 1 Image 1

M80-4E10605F1

 View Details
Image 1 Image 1

M80-4T10642F3

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4000605

 View Details
Image 1 Image 1

M80-4130698

 View Details
Image 1 Image 1

M80-4140698

 View Details
Image 1 Image 1

M80-4200605

 View Details
Image 1 Image 1

M80-4600605

 View Details
Image 1 Image 1

M80-4610605

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5400642

 View Details
