M80-5401205

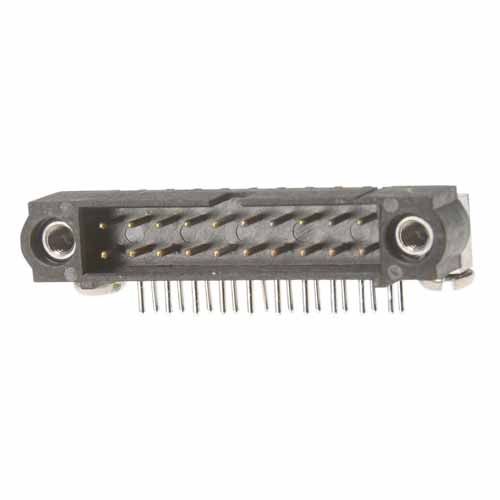

Datamate J-Tek DIL Male Horizontal 3mm Throughboard Connector, gold, with jackscrews + 3.5mm board mount bolts, 6+6 contacts

Download Datasheet Request Sample
In-Stock: 4
Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
252 $15.39 $3878.28 Tube
504 $14.82 $7469.28 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts12
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.108g
Dimensions22.00 x 8.60 x 9.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hoods

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:
