M80-5631205

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with reverse fix slotted jackscrews, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
100 $11.671 $1167.1 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Slotted Head (Reverse Fix)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.105g
Dimensions22.00 x 6.00 x 8.55

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1950005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

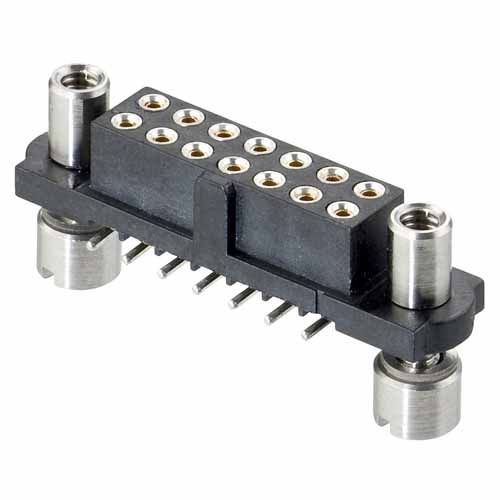

M80-4S11242F9

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4051205

 View Details
Image 1 Image 1

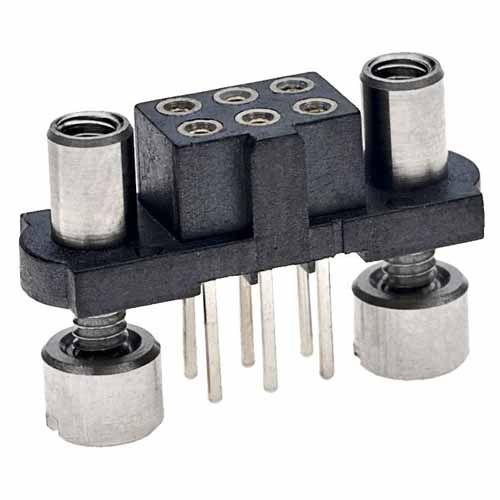

M80-4061205

 View Details
Image 1 Image 1

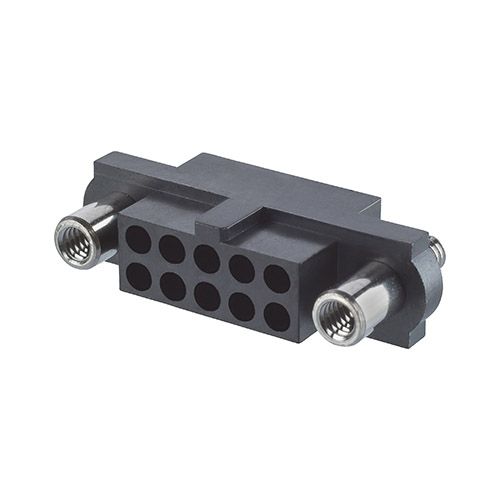

M80-4151298

 View Details
Image 1 Image 1

M80-4621205

 View Details
Image 1 Image 1

M80-4631205

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5631405

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-5611205

View Details

M80-5621205

View Details

M80-5711205

View Details

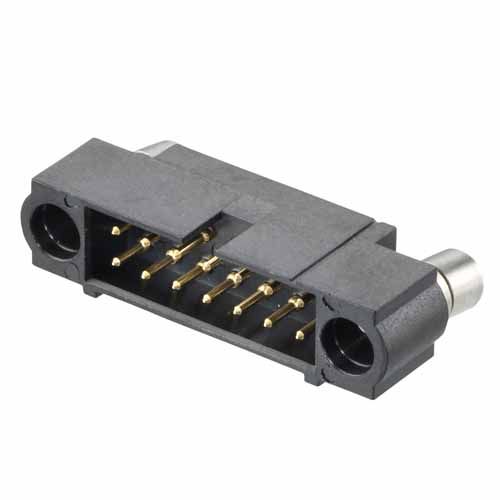

M80-5831205
