M80-5C11005M5

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with jackscrews + 5mm side panel mount, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $12.834 $641.7 Bulk/Loose
250 $12.61 $3152.5 Bulk/Loose
500 $12.34 $6170 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts10
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Slotted Side Panel Mount Bolts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.478g
Dimensions20.00 x 6.00 x 8.60
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1950005

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2270000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4801005

 View Details
Image 1 Image 1

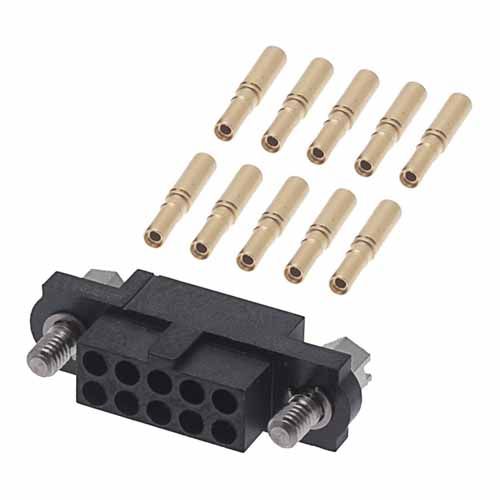

M80-4E11005F1
