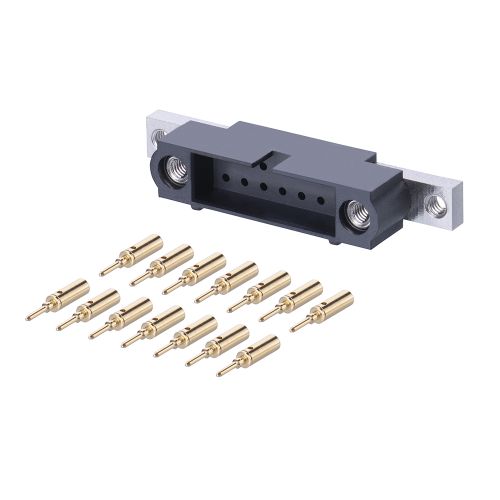

M80-5C11205MU

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with jackscrews + rear panel mount, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 20
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
25 $12.568 $314.2 Bulk/Loose
50 $11.819 $590.95 Bulk/Loose
100 $11.114 $1111.4 Bulk/Loose
250 $10.29 $2572.5 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts12
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Screw-Lok with Rear Panel Mount (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.609g
Dimensions30.30 x 6.00 x 7.85
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Use with Positioner

Articles from this product series can be use in the following assortments:

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:
