M80-5L11242MC

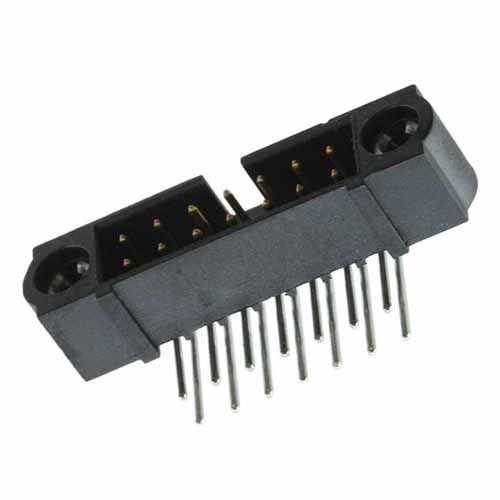

Datamate J-Tek DIL Male Horizontal 3mm Throughboard Connector, selective gold + tin, retainers for 101Lok, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 12
Quantity Unit Price Ext Price Packaging
300 $4.47 $1341 Tube
540 $4.46 $2408.4 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts12
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew Style101Lok Bayonet Receptacle Fixing
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.261g
Dimensions22.00 x 8.25 x 9.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard
