M80-5S11042ME

Datamate J-Tek DIL Male Vertical SMT Connector, selective gold + tin, retainers for 101Lok with 5mm board mount, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 13		 Quantity Unit Price Ext Price Packaging
507 $10.15 $5146.05 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew Style101Lok Bayonet Receptacle with Board Mount Stud
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.723g
Dimensions20.00 x 6.75 x 10.80

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C11042FC

 View Details
Image 1 Image 1

M80-4D11042FC

 View Details
Image 1 Image 1

M80-4T11042FD

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4181098

 View Details
Image 1 Image 1

M80-FB11068FC-0150L

 View Details
Image 1 Image 1

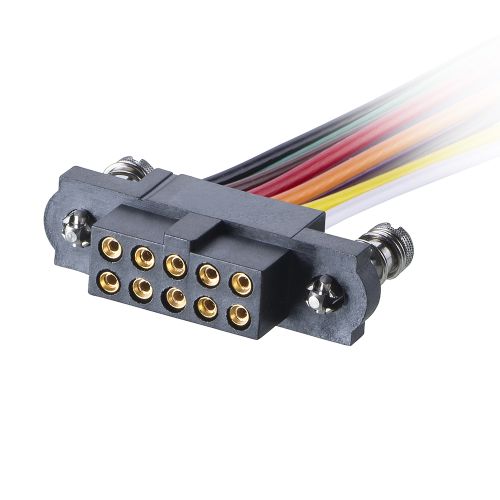

M80-FC11068FC-0150L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5S11005ME

 View Details
