M80-5T21222ME

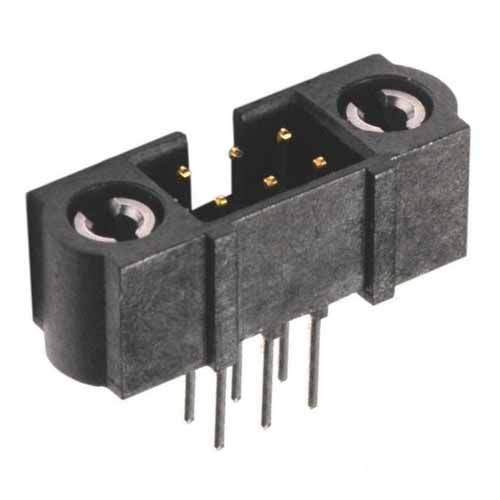

Datamate J-Tek DIL Male Vertical 4.5mm Throughboard Connector, selective gold + tin/lead, retainers with 5mm board mount for 101Lok, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 12		 Quantity Unit Price Ext Price Packaging
252 $8.872 $2235.744 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts12
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew Style101Lok Bayonet Receptacle with Board Mount Stud
Termination FinishTin/Lead
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.858g
Dimensions22.00 x 6.00 x 10.55
Above Board Height5.55mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)
