M80-6110545

Datamate L-Tek SIL Female Large Bore (22 AWG) Crimp Connector, gold clip + gold shell, hi-temp housing, 5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
992 $2.519 $2498.848 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.587g
Dimensions13.15 max x 3.40 x 8.15 max

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060505

 View Details
Image 1 Image 1

M80-8080505

 View Details
Image 1 Image 1

M80-8090505

 View Details
Image 1 Image 1

M80-8420542

 View Details
Image 1 Image 1

M80-8430542

 View Details
Image 1 Image 1

M80-8520542

 View Details
Image 1 Image 1

M80-8820542

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

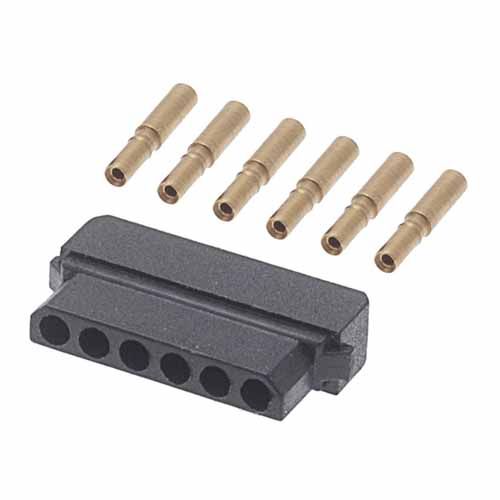

M80-6110645

 View Details
