M80-6810842

Datamate L-Tek DIL Female Vertical SMT Connector, gold clip + tin shell, 4+4 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 21		 Quantity Unit Price Ext Price Packaging
105 $6.14 $644.7 Tube
1008 $5.99 $6037.92 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts8
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleCompatible with latches
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.611g
Dimensions11.15 x 7.50 x 5.60
Above Board Height5.60mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8100805

 View Details
Image 1 Image 1

M80-8110805

 View Details
Image 1 Image 1

M80-8120805

 View Details
Image 1 Image 1

M80-8130805

 View Details
Image 1 Image 1

M80-8260842

 View Details
Image 1 Image 1

M80-8280842

 View Details
Image 1 Image 1

M80-8410842

 View Details
Image 1 Image 1

M80-8540842

 View Details
Image 1 Image 1

M80C108368C

 View Details
Image 1 Image 1

M80-6650842

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6810842P

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8500842

View Details

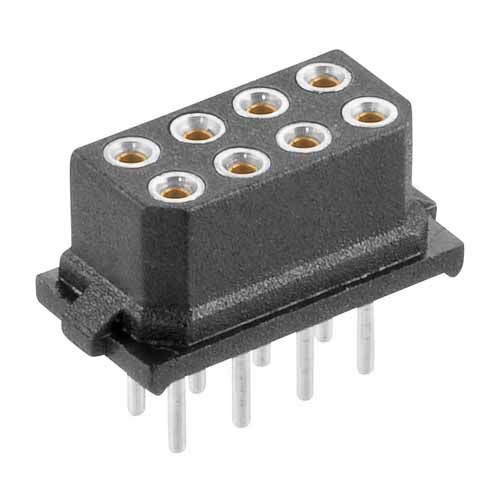

M80-8870801
