M80-8401745

Datamate L-Tek SIL Female Vertical 3mm Throughboard Connector, gold clip + gold shell, 17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 6		 Quantity Unit Price Ext Price Packaging
30 $12.19 $365.7 Tube
66 $8.966 $591.756 Tube
1002 $8.31 $8326.62 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight1.19g
Dimensions37.15 max x 3.40 x 8.10

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8761722

 View Details
Image 1 Image 1

M80-8771722

 View Details
Image 1 Image 1

M80-8781722

 View Details
Image 1 Image 1

M80-8791722

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8401742

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-7900545

View Details

M80-8501845

View Details

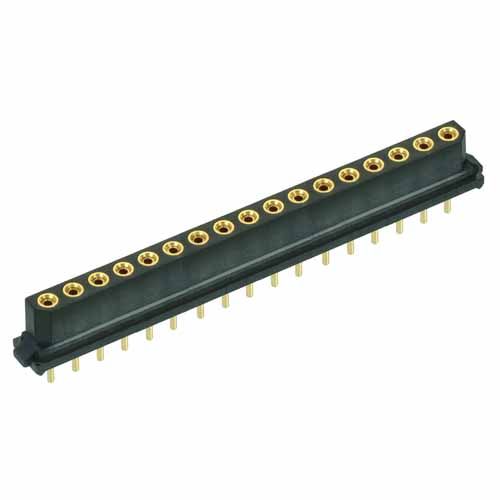

M80-8971705
