M80-8500445

Datamate L-Tek DIL Female Vertical 3mm Throughboard Connector, gold clip + gold shell, 2+2 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 32
Quantity Unit Price Ext Price Packaging
224 $2.083 $466.592 Tube
1024 $2.06 $2109.44 Tube
2528 $1.92 $4853.76 Tube
5024 $1.85 $9294.4 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts4
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.294g
Dimensions7.15 max x 3.40 x 8.10
Above Board Height5.10mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

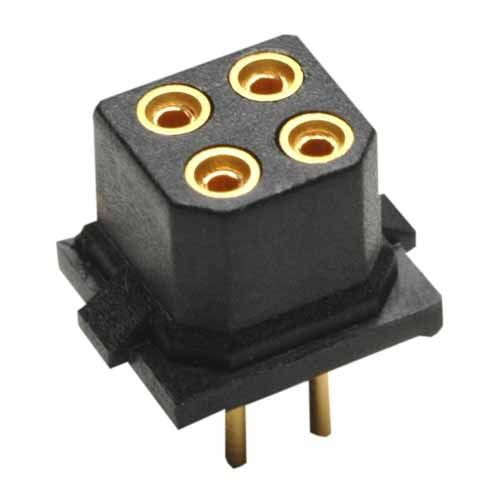

M80-8870405
