M80-8533442

Datamate L-Tek DIL Male Vertical 3mm Throughboard Connector, latched, selective gold + tin, 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 6		 Quantity Unit Price Ext Price Packaging
102 $4.816 $491.232 Tube
504 $4.18 $2106.72 Tube
1002 $4.13 $4138.26 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts34
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.466g
Dimensions38.10 x 5.85 x 11.35
Above Board Height8.35mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-299

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7883405

 View Details
Image 1 Image 1

M80-8443445

 View Details
Image 1 Image 1

M80-8503442

 View Details
Image 1 Image 1

M80-8883405

 View Details
Image 1 Image 1

M80-8893405

 View Details
Image 1 Image 1

M80-FC23405L0-0150F

 View Details
Image 1 Image 1

M80-FC23468L0-0150L

 View Details
Image 1 Image 1

M80-6813445

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8534442

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8283442

View Details

M80-8513442

View Details

M80-8543442

View Details

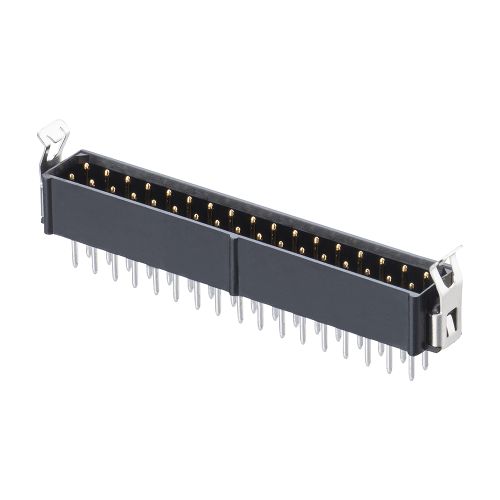

M80-8673422
