M80-8683422

Datamate L-Tek DIL Male Horizontal 3mm Throughboard Connector, unlatched, selective gold + tin/lead, 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 6		 Quantity Unit Price Ext Price Packaging
1008 $4.775 $4813.2 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts34
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Latching StyleNone
Termination FinishTin/Lead
Housing MaterialPBT
Flammability RatingUL94V-0
Weight1.766g
Dimensions37.60 x 8.85 x 8.15
Above Board Height5.85mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7883405

 View Details
Image 1 Image 1

M80-8443445

 View Details
Image 1 Image 1

M80-8503442

 View Details
Image 1 Image 1

M80-8883405

 View Details
Image 1 Image 1

M80-8893405

 View Details
Image 1 Image 1

M80-FC23405L0-0150F

 View Details
Image 1 Image 1

M80-FC23468L0-0150L

 View Details
Image 1 Image 1

M80-6813445

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

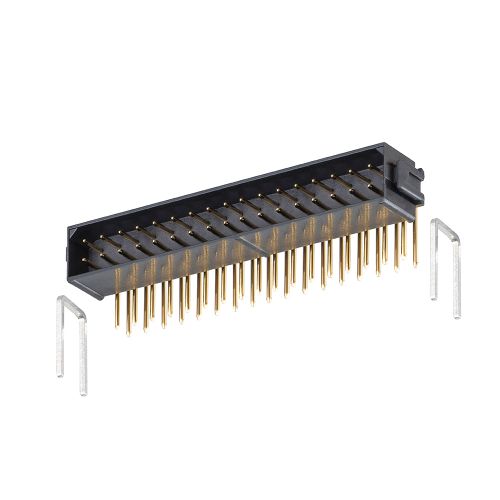

M80-8683405
