M80-8874401

Datamate L-Tek DIL Female Vertical 3mm Throughboard Connector, gold clip + tin/lead shell, 22+22 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
25 $13.72 $343 Tube
45 $11.413 $513.585 Tube
250 $10.98 $2745 Tube
500 $10.74 $5370 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts44
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Latching StyleCompatible with latches
Termination FinishTin/Lead
Housing MaterialPBT
Flammability RatingUL94V-0
Weight2.94g
Dimensions47.15 max x 3.40 x 8.10
Above Board Height5.10mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8664422

 View Details
Image 1 Image 1

M80-8684422

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

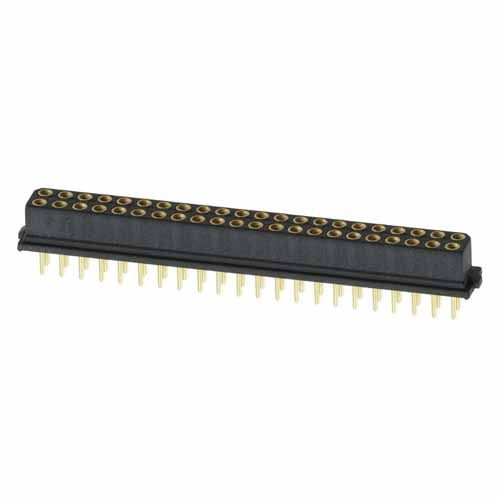

M80-8874405

 View Details
