M80-8970305

Datamate L-Tek SIL Female Vertical 3mm Throughboard Connector, gold clip + gold shell, 3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 26		 Quantity Unit Price Ext Price Packaging
1300 $2.383 $3097.9 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.226g
Dimensions9.15 max x 3.40 x 8.10

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060305

 View Details
Image 1 Image 1

M80-8070305

 View Details
Image 1 Image 1

M80-8080305

 View Details
Image 1 Image 1

M80-8090305

 View Details
Image 1 Image 1

M80-8430342

 View Details
Image 1 Image 1

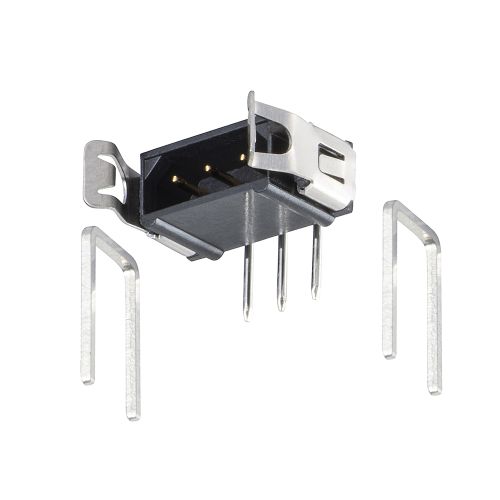

M80-8760322

 View Details
Image 1 Image 1

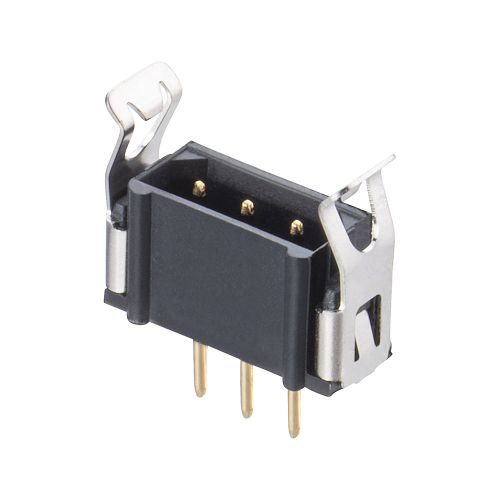

M80-8770305

 View Details
Image 1 Image 1

M80-8790322

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

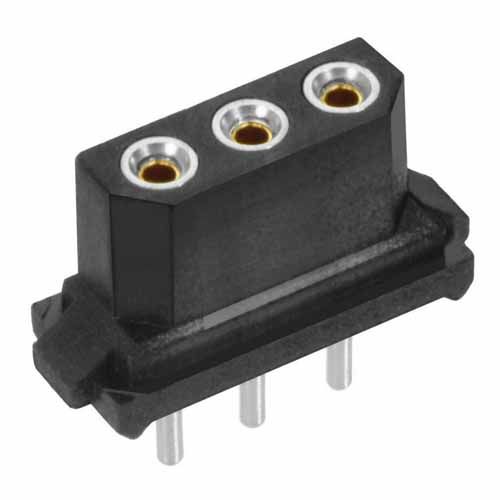

M80-8970301

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-7900345

View Details

M80-8400345

View Details
