M80-9041002

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT), suitable for 10 (5+5) signal contacts or equivalent

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
100 $54.72 $5472 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationHorizontal
Connection TypeBoard Mount
Number Of Rows2
Number Of Contacts10
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight1.908g
Dimensions30.80 x 14.00 x 7.40
Above Board Height7.40mm
End StackableNo
Pcb MountingBoard Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2270000B

 View Details
Image 1 Image 1

M80-2320000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

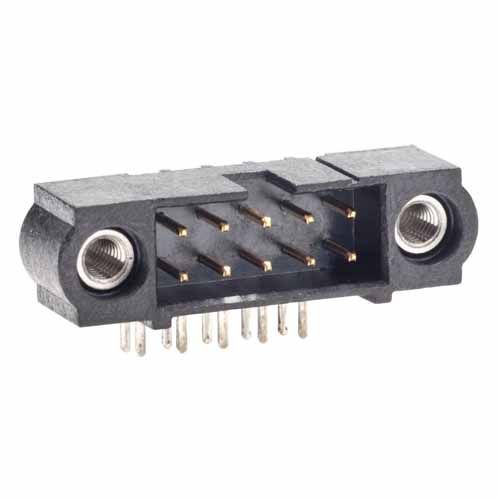

M80-5301042

 View Details
Image 1 Image 1

M80-5321042

 View Details
Image 1 Image 1

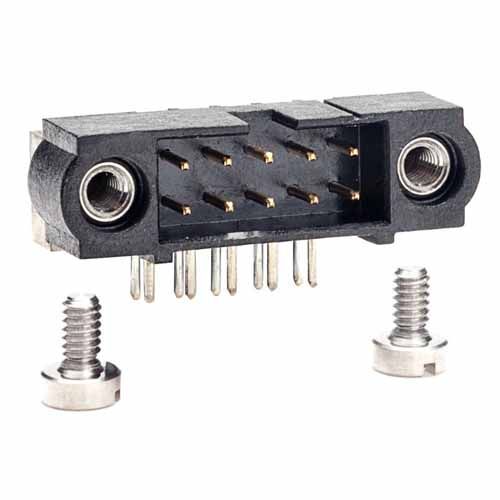

M80-5401042

 View Details
Image 1 Image 1

M80-5421042

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9451002

 View Details
Image 1 Image 1

M80-9461002

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9051002

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-9041202

View Details

M80-9061002

View Details
