M80-9042602

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT), suitable for 26 (13+13) signal contacts or equivalent

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
100 $61.07 $6107 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationHorizontal
Connection TypeBoard Mount
Number Of Rows2
Number Of Contacts26
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight2.954g
Dimensions46.80 x 14.00 x 7.40
Above Board Height7.40mm
End StackableNo
Pcb MountingBoard Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2270000B

 View Details
Image 1 Image 1

M80-2320000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

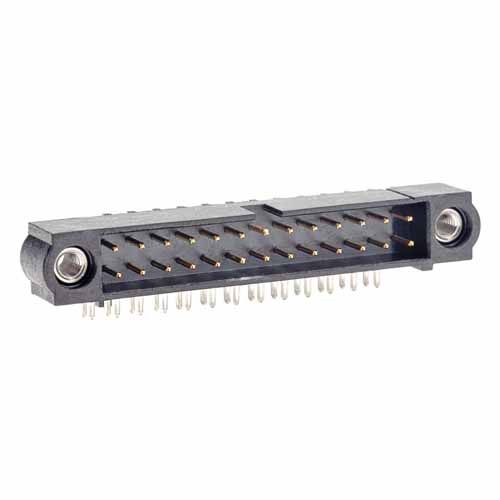

M80-5302642

 View Details
Image 1 Image 1

M80-5322642

 View Details
Image 1 Image 1

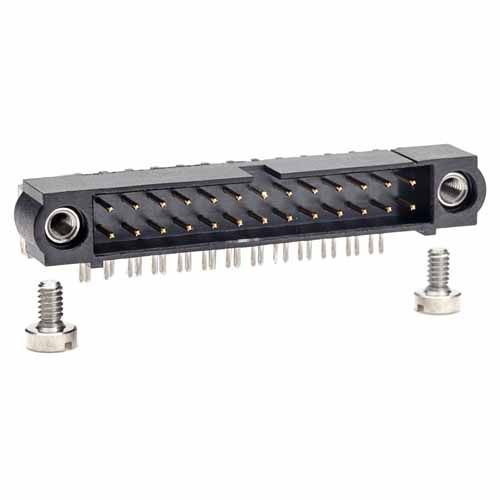

M80-5402642

 View Details
Image 1 Image 1

M80-5422642

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9452602

 View Details
Image 1 Image 1

M80-9462602

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

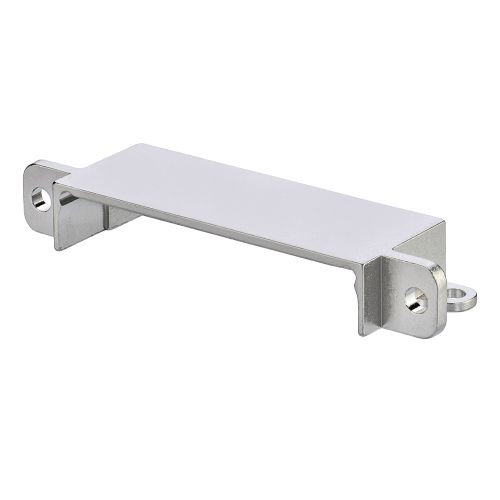

M80-9052602
