M80-9043402

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT), suitable for 34 (17+17) signal contacts or equivalent

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
100 $62.88 $6288 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationHorizontal
Connection TypeBoard Mount
Number Of Rows2
Number Of Contacts34
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight3.477g
Dimensions54.80 x 14.00 x 7.40
Above Board Height7.40mm
End StackableNo
Pcb MountingBoard Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2270000B

 View Details
Image 1 Image 1

M80-2320000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

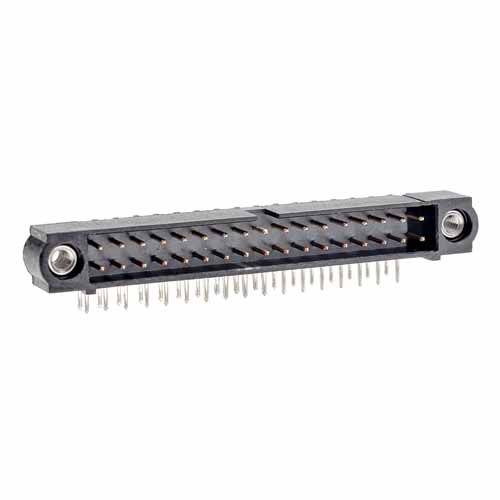

M80-5303442

 View Details
Image 1 Image 1

M80-5323442

 View Details
Image 1 Image 1

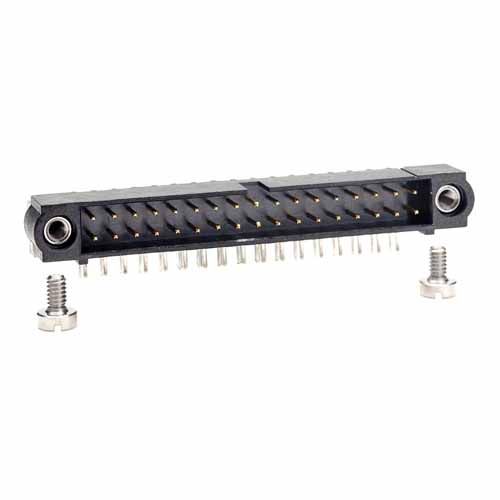

M80-5403442

 View Details
Image 1 Image 1

M80-5423442

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9453402

 View Details
Image 1 Image 1

M80-9463402

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9053402

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-9043602

View Details

M80-9063402

View Details
