M80-9050802

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT) with rear panel mount, suitable for 8 (4+4) signal contacts or equivalent

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationHorizontal
Connection TypeBoard Mount and Rear Panel Mount
Number Of Rows2
Number Of Contacts8
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight2.043g
Dimensions32.80 x 14.00 x 7.40
Above Board Height7.40mm
End StackableNo
Pcb MountingBoard Mount and Rear Panel Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2270000B

 View Details
Image 1 Image 1

M80-2320000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5300842

 View Details
Image 1 Image 1

M80-5320842

 View Details
Image 1 Image 1

M80-5400842

 View Details
Image 1 Image 1

M80-5420842

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9450802

 View Details
Image 1 Image 1

M80-9460802

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9040802

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

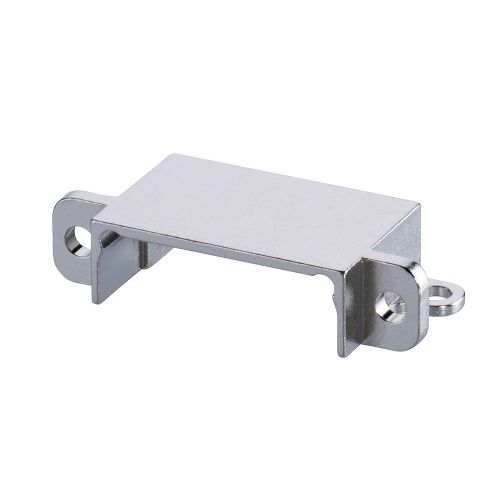

M80-9051002

View Details

M80-9060802

View Details
