M80-9062402

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for front panel mount (cable) or board mount (vertical PCB connectors), suitable for 24 (12+12) signal contacts or equivalent

Download Datasheet Request Sample

Factory Lead Time (wks): 23 All prices are in USD SPQ: 5	Quantity	Unit Price	Ext Price	Packaging
	200	$43.878	$8775.6	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm/4.00mm (0.079"/0.157")

OrientationVertical

Connection TypeFront Panel Mount or Board Mount

Number Of Rows2

Number Of Contacts24

Environmental Ratings-55°C to +125°C

Housing MaterialAluminium Alloy

Weight1.683g

Dimensions35.70 x 8.00 x 7.70

Above Board Height8.00mm

End StackableNo

Pcb MountingFront Panel Mount or Board Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Housings

Articles from this product series can be use in the following assortments:

M80-5112442

View Details

M80-5C12405M2

View Details

M80-5D12405M2

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

M80-9452402

View Details

M80-9462402

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M80-9042402

View Details

Documents & Media

Component Spec

Download

Product Training Module

Download

Product Datasheet

Download

Web Address

Download

FMD

Download

Related Products

Following products can be suitable for the assortments.

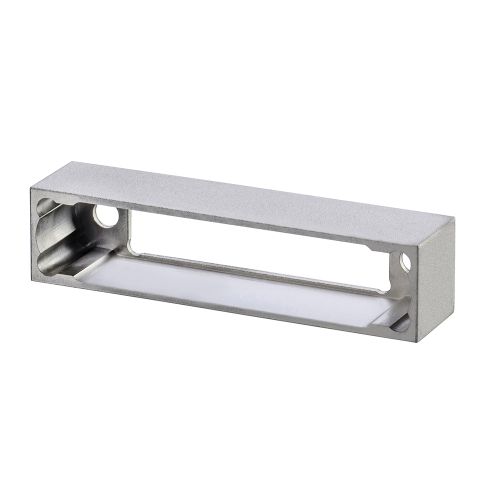

M80-9062202

View Details

M80-9062602

View Details
