M80-9422605

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with hoods + jackscrews, 13+13 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
56 $18.54 $1038.24 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts26
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight6.627g
Dimensions45.50 x 23.55 x 7.40
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1950005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4802605

 View Details
Image 1 Image 1

M80-4E12642F1

 View Details
Image 1 Image 1

M80-4T12642F3

 View Details
Image 1 Image 1

M80-4002642

 View Details
Image 1 Image 1

M80-4202642

 View Details
Image 1 Image 1

M80-4602605

 View Details
Image 1 Image 1

M80-4612605

 View Details
Image 1 Image 1

M80-4652605

 View Details
Image 1 Image 1

M80-9412605

 View Details
Image 1 Image 1

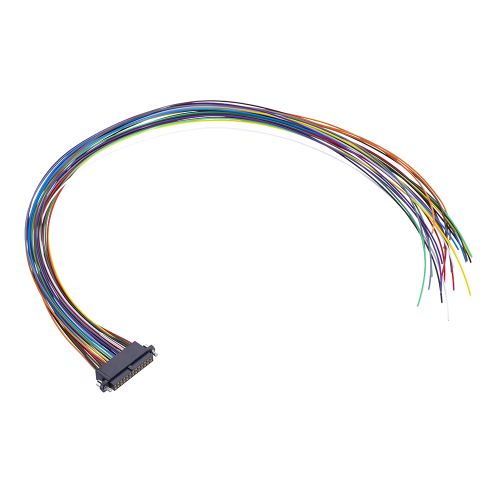

M80-FE22668F2-0450L
