M80-9424205

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with hoods + jackscrews, 21+21 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $29.605 $1480.25 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight8.799g
Dimensions61.50 x 23.55 x 7.40

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1950005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9414205

 View Details
Image 1 Image 1

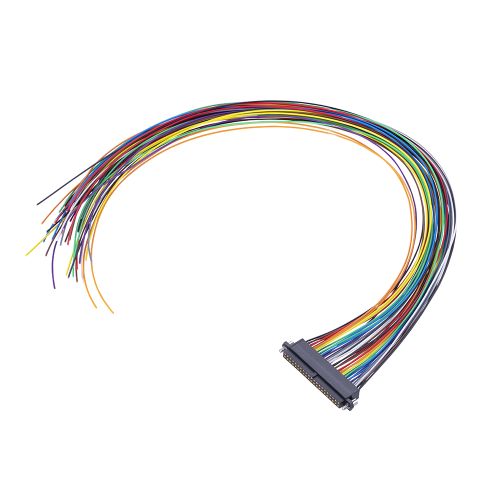

M80-FE24268F2-0450L

 View Details
Image 1 Image 1

M80-4654205

 View Details
Image 1 Image 1

M80-4804205

 View Details
Image 1 Image 1

M80-4004242

 View Details
Image 1 Image 1

M80-4204242

 View Details
Image 1 Image 1

M80-4604205

 View Details
Image 1 Image 1

M80-4614205

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9425005

 View Details
