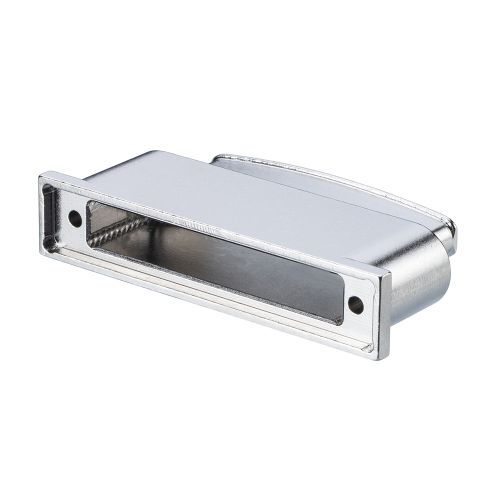

Product Images

M80-9453602

Datamate Metal Backshell for J-Tek or Mix-Tek female cable connectors; female backshell kit with slotted jackscrews and e-clips, suitable for 36 (18+18) signal contacts or equivalent

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $110.98 $5549 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationStraight
Connection TypeCable (Solder + Crimp)
Number Of Rows2
Number Of Contacts36
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Slotted Head (Standard Gender)
Housing MaterialAluminium Alloy
Weight15.281g
Dimensions50.20 x 30.00 x 10.70
End StackableNo
Pcb MountingCable (Solder + Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with E Clip Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-300

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9470000

 View Details
Image 1 Image 1

M80-9480000

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9063602

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9453802

 View Details
