M80-FB10868F2-0150L

Datamate J-Tek T-Contact Cable Assembly, Female Single-Ended, with floating hex socket jackscrews, multi-color 22 AWG cable, 150mm long, 4+4 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
10 $48.133 $481.33 Bulk/Loose
50 $47.92 $2396 Bulk/Loose
100 $45.27 $4527 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size22 AWG
Number Of Rows2
Number Of Contacts8
Current Rating8.5A max individual contact, 3.5A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight4.68g
Dimensions150.30 x 18.00 x 5.50
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Use with Hoods

Articles from this product series can be use in the following assortments:

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4140898

View Details

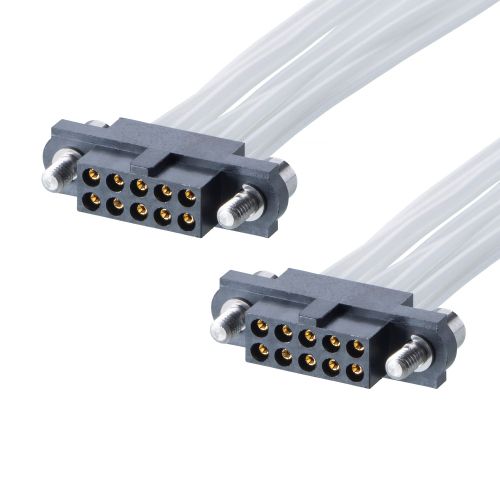

M80-FB10805F2-XXXXF2

View Details

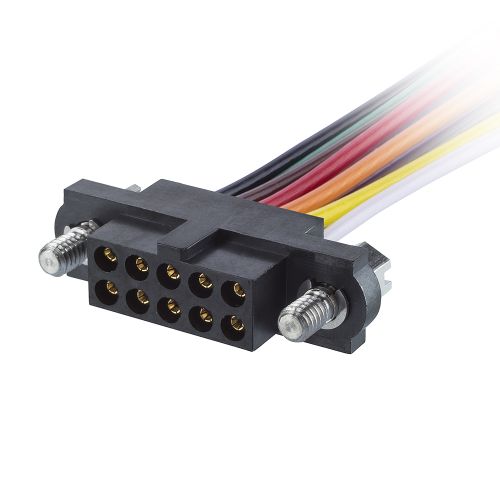

M80-FB10868F1-XXXXL
