M80-FC21068F2-0150L

Datamate J-Tek Cable Assembly, Female Single Ended, hex socket jackscrews, multi-color 24 AWG cable, 150mm long, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
10 $37.631 $376.31 Bulk/Loose
25 $34.696 $867.4 Bulk/Loose
50 $32.62 $1631 Bulk/Loose
100 $31.25 $3125 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size24 AWG
Number Of Rows2
Number Of Contacts10
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight5.225g
Dimensions150.30 x 20.00 x 5.50
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9461002

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details
Image 1 Image 1

M80-9110099

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5001042

 View Details
Image 1 Image 1

M80-5101042

 View Details
Image 1 Image 1

M80-5301042

 View Details
Image 1 Image 1

M80-5401042

 View Details
Image 1 Image 1

M80-5611005

 View Details
Image 1 Image 1

M80-5661005

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

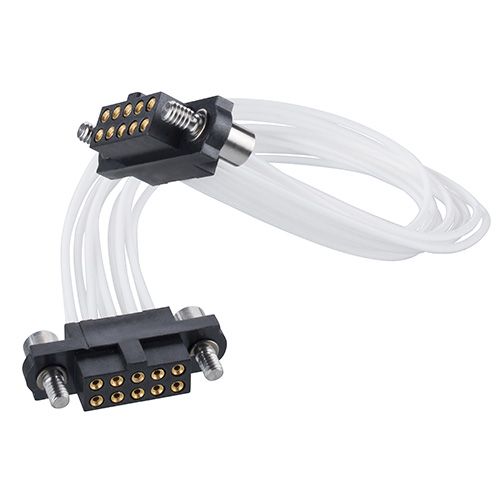

M80-FC21005F2-0150F2
