M80-FC305F1-08

Datamate Coax Jack (Female) Connector for cable, Hexagonal slotted jackscrews, no signal contacts, 8 x Ø2mm Crimp Coax contacts

Download Datasheet Request Sample
In-Stock: 5
Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
10 $80.89 $808.9 Single Pack
25 $74.58 $1864.5 Single Pack
50 $72.18 $3609 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire SizeØ2mm (RG178)
Number Of Rows1
Current Rating0.5A per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight4.805g
Dimensions42.00 x 5.50 x 13.70
End StackableNo
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-292

 View Details
Image 1 Image 1

Z80-293

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-291

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9453202

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-305

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-MH313M5-08

 View Details
Image 1 Image 1

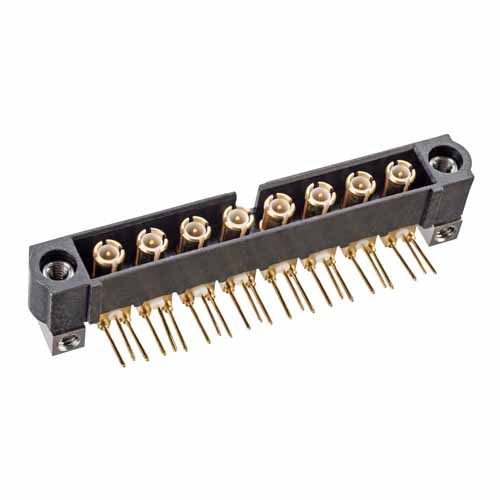

M80-MH314M5-08

 View Details
Image 1 Image 1

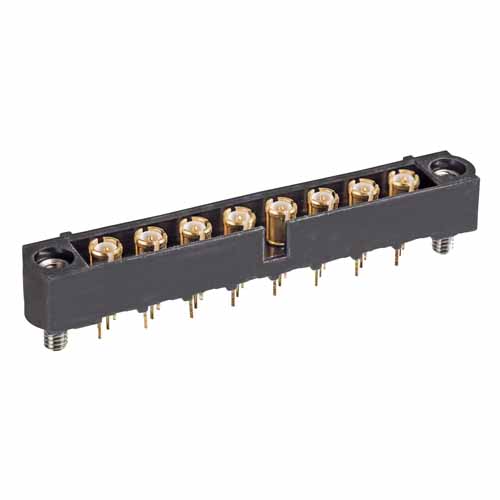

M80-MV311M2-08

 View Details
Image 1 Image 1

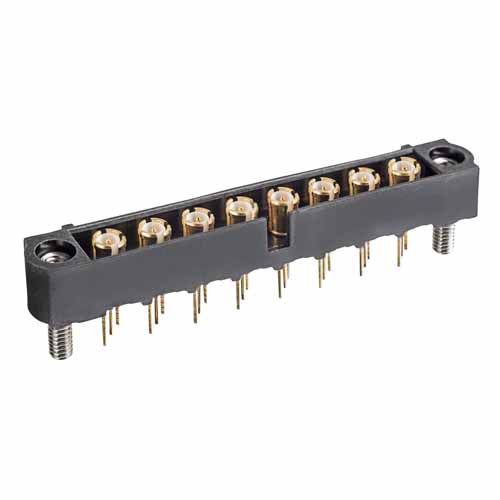

M80-MV312M3-08

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

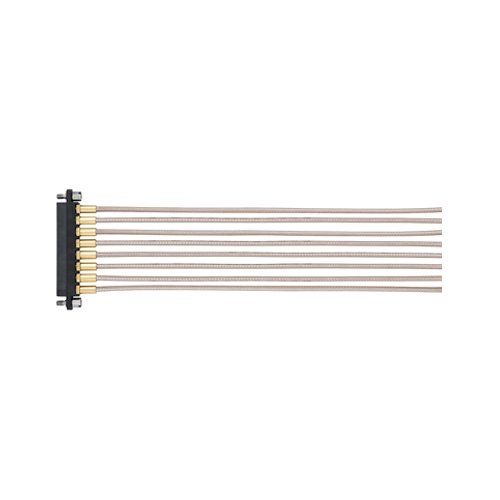

M80-FC305F1-08-0150L

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-FC305F1-06

View Details

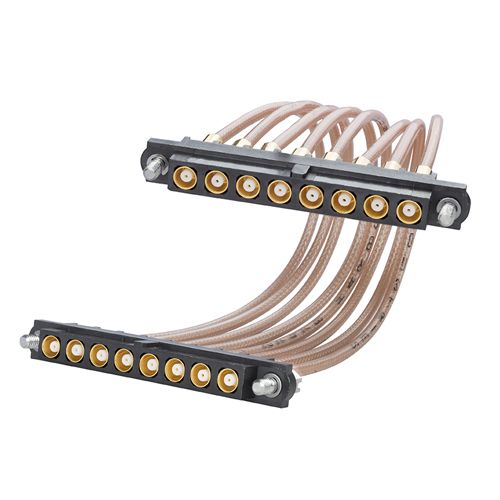

M80-FC305F1-08-0150F1

View Details
