M80-FC31605F2-0300F2

Datamate J-Tek Cable Assembly, Female-to-Female, with floating hex socket jackscrews, white 26 AWG cable, 300mm long, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
10 $101.129 $1011.29 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight13.963g
Dimensions300.60 x 26.00 x 5.50

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

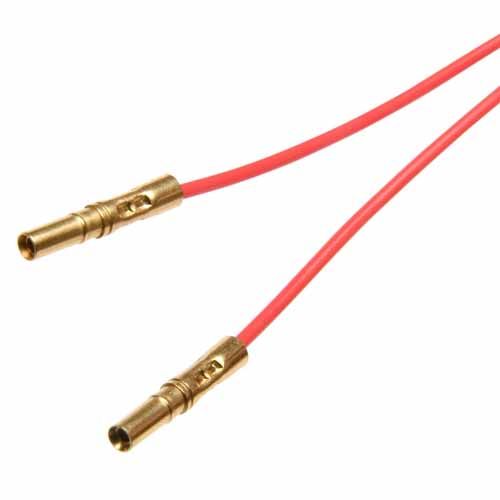

M80-0130005

 View Details
Image 1 Image 1

M80-9240099

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5001642

 View Details
Image 1 Image 1

M80-5101642

 View Details
Image 1 Image 1

M80-5301642

 View Details
Image 1 Image 1

M80-5401642

 View Details
Image 1 Image 1

M80-5611605

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-FC31605F2-XXXXF2

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4811605

View Details

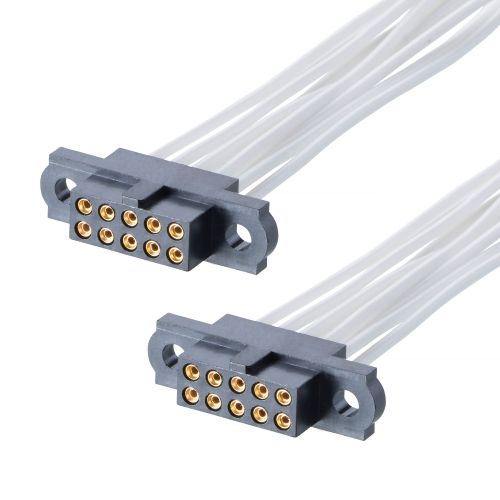

M80-FC31605F0-XXXXF0

View Details

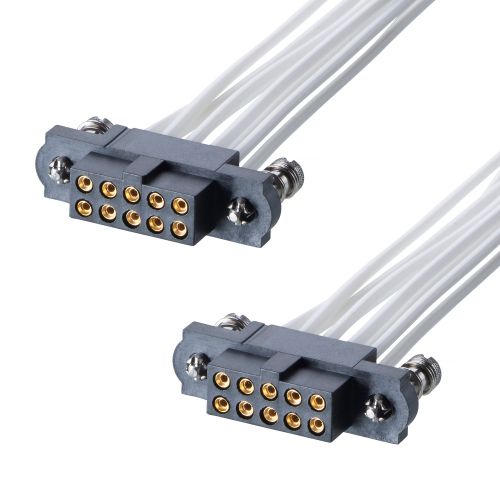

M80-FC31605FC-XXXXFC

View Details

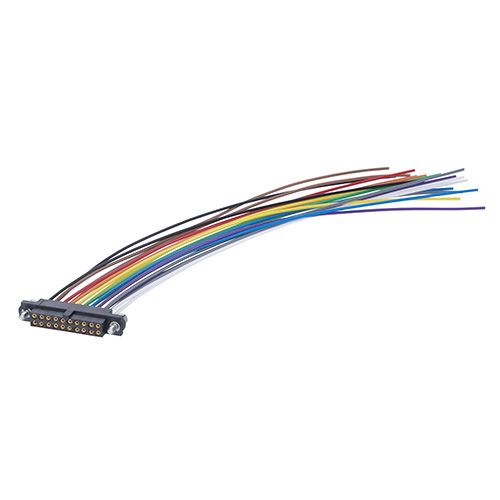

M80-FC31668F2-XXXXL
