M80-FCPF5F1-08-0150L

Datamate Power Cable Assembly, Female Single Ended, hex slotted jackscrews, white 10 AWG cable, 150mm long, 8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
5 $200.75 $1003.75 Bulk/Loose
25 $197.43 $4935.75 Bulk/Loose
50 $195.94 $9797 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size10 AWG
Current Rating40A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight66.029g
Dimensions150.30 x 42.00 x 5.50

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4000000F1-08-PF5-00-000

View Details

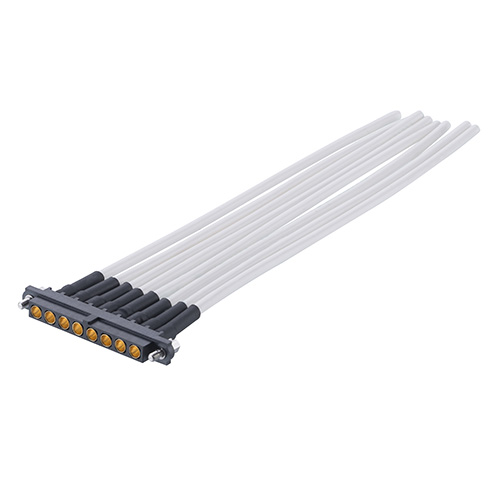

M80-FC325F1-08-0150L
