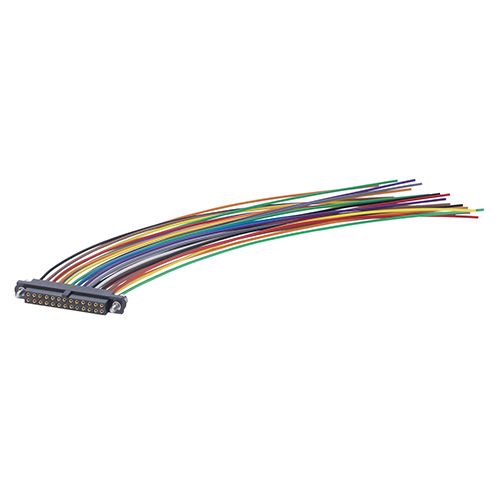

M80-FE23468F2-0450L

Datamate J-Tek Cable Assembly, Female Single-Ended, backpotted with 5mm potting wall, floating hex socket jackscrews, multi-color 24 AWG cable, 450mm long, 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 20
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
25 $159.32 $3983 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size24 AWG
Number Of Rows2
Number Of Contacts34
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight40.778g
Dimensions450.30 x 44.00 x 5.50
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5003442

 View Details
Image 1 Image 1

M80-5103442

 View Details
Image 1 Image 1

M80-5303442

 View Details
Image 1 Image 1

M80-5403442

 View Details
Image 1 Image 1

M80-5613405

 View Details
Image 1 Image 1

M80-5663405

 View Details
Image 1 Image 1

M80-9423405

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-FE23468F2-XXXXL

 View Details
