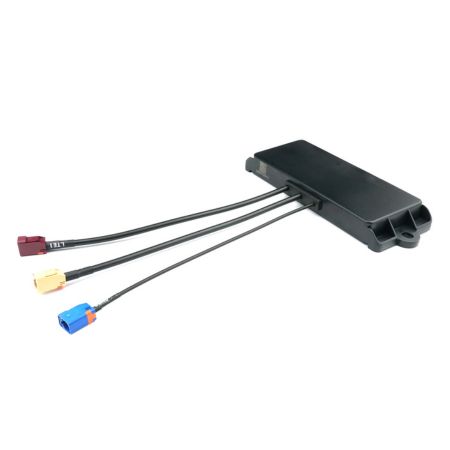

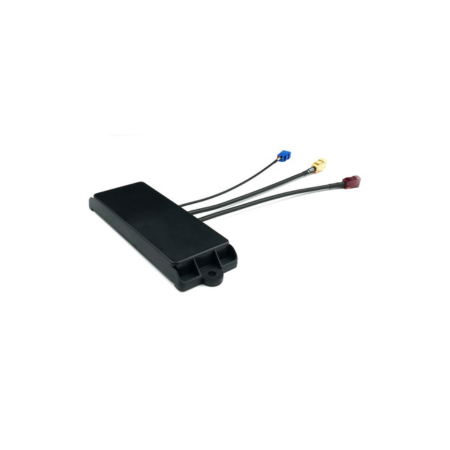

MMANT-1700401-FK3-000

3-in-1 Antenna, LTE x 1-2, Active GPS/Beidou, Screw Mount, 3 Fakra Connector

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin Asia
Product FamilyHarwin Solution
Product StatusActive
RangeAntenna
Connection TypeFakra
Environmental RatingsIP-67
Pcb MountingScrew Mount
Rf Performance5G/LTE:698-960MHz/1500-1700MHz/1710-2690MHz 3300-5000MHz GNSS:1561-1602MHz, 5G/LTE:698-960MHz 2.7dBi/1500-1700MHz 4.0dBi/1710-2690MHz 7.8dBi/3300-5000MHz 7.5dBi GNSS:1561-1602MHz 28dB, 5G/LTE:698-960MHz≤5/1500-1700MHz≤3.5/1710-2690MHz≤5.5/3300-5000MHz≤3.5 GNSS:1561-1602MHz≤2, 50Ω

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

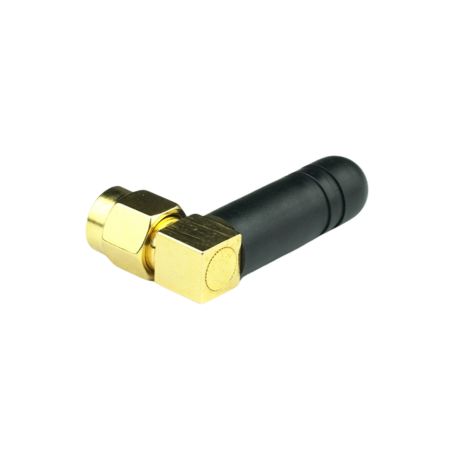

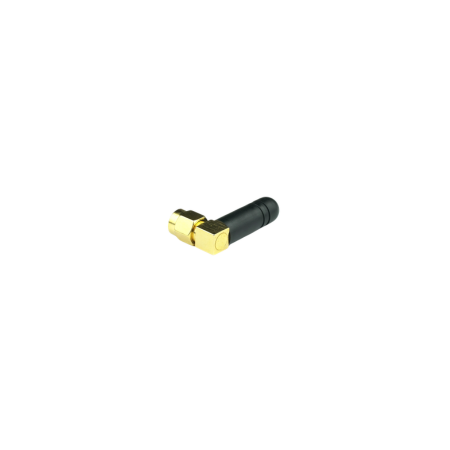

MMANT-1300900-SM1-000

 View Details
Image 1 Image 1

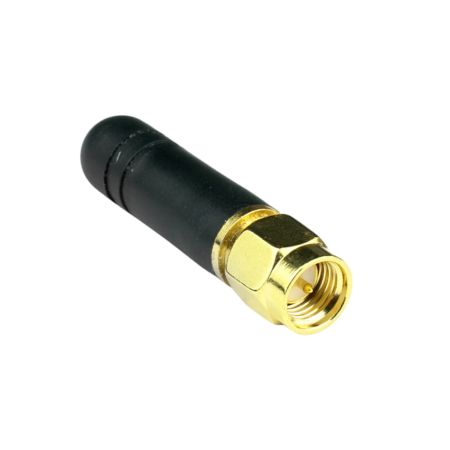

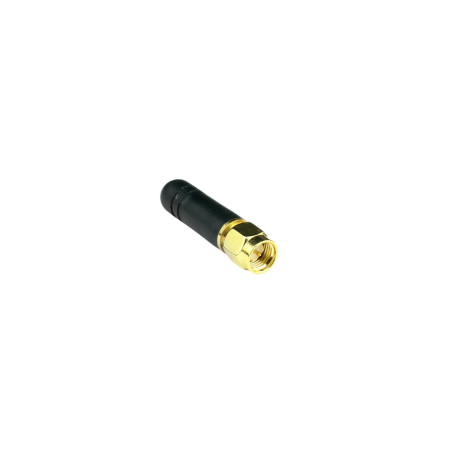

MMANT-1301000-SM1-000

 View Details
Image 1 Image 1

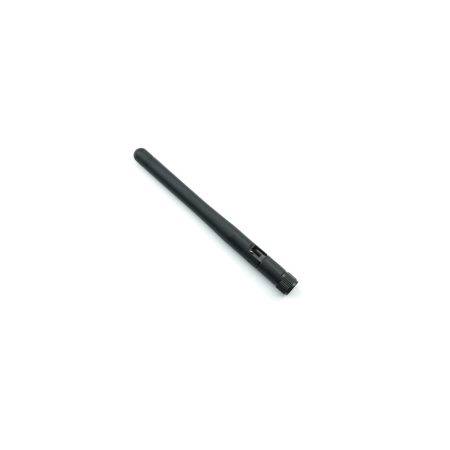

MMANT-1301000-SM1-001

 View Details
Image 1 Image 1

MMANT-1401000-SM1-000

 View Details
Image 1 Image 1

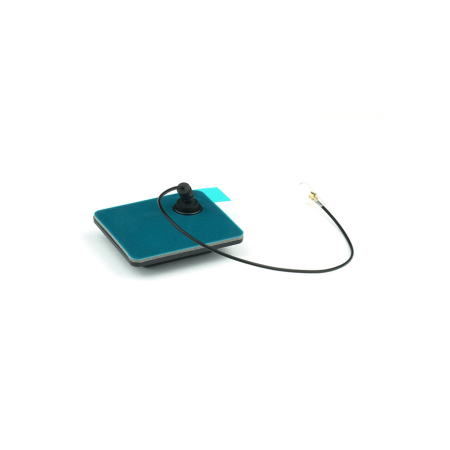

MMANT-1500701-UF-000

 View Details
Image 1 Image 1

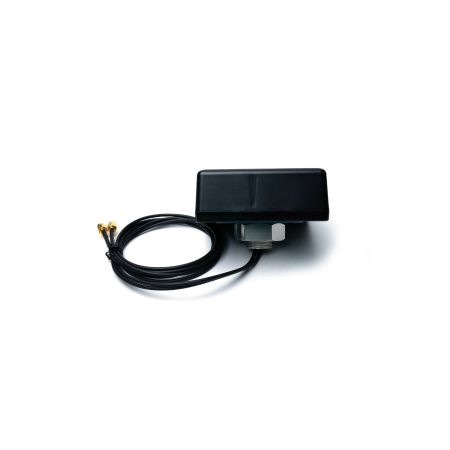

MMANT-1700701-SM2-000

 View Details
