MMUSBC-2016BF-SMHP-XXX

USB 2.0 Type C Receptacle Top Mount SMT Type

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin Asia
PackageTape & Reel
Product FamilyHarwin Solution
Product StatusActive
RangeUSB
Pitch0.5mm(0.02")
GenderFemale
OrientationHorizontal
Connection TypeUSB Series Type C Plug Connector
Number Of Contacts12
Current Rating10A Max VBUS
Environmental Ratings-25˚C~+85˚C
Termination FinishGold finish on contact area, Tin finish on termination
Pcb MountingTop Mount
Current Rating A10 Max VBUS

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

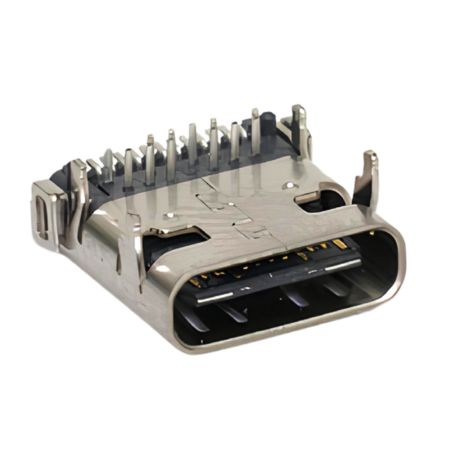

MMUSBC-4024AF-SMHS-XXXX

 View Details
Image 1 Image 1

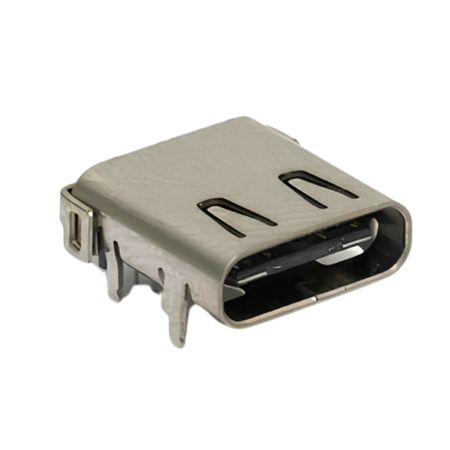

MMUSBC-3224AF-SMHS-XXX

 View Details
Image 1 Image 1

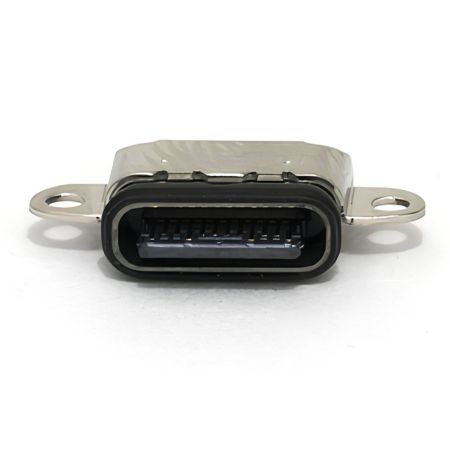

MMUSBC-3224BF-MMWP01-XXX

 View Details
Image 1 Image 1

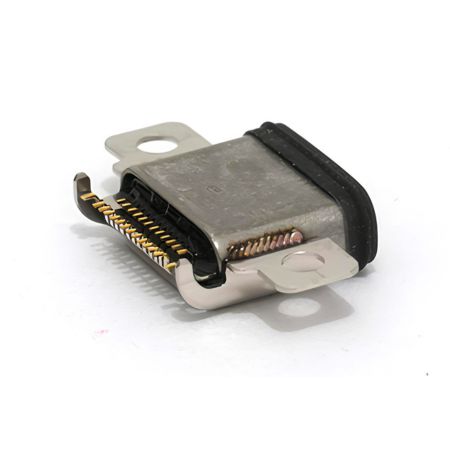

MMUSBC-3224BF-MMWP02-XXX

 View Details
Image 1 Image 1

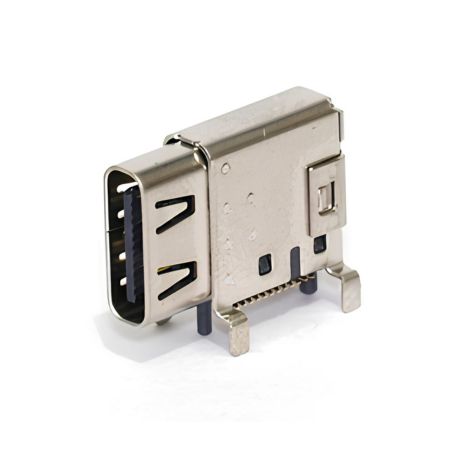

MMUSBC-3224BF-UPHS-XXX

 View Details

Documents & Media

Product Datasheet

Product Datasheet

Download

Related Products

Following products can be suitable for the assortments.

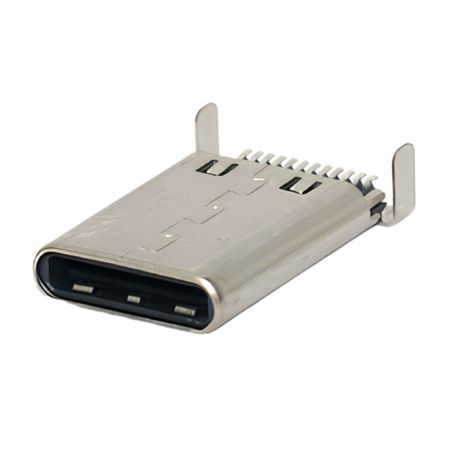

MMUSBC-4024BM-BMHS-XXX

View Details

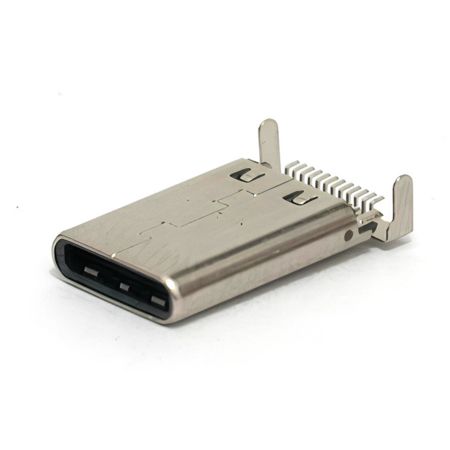

MMUSBC-3224BM-BMHS-XXX

View Details
