Product Images

D3081-05

Ø1mm Uninsulated Shorting Plug, gold, 6.35mm pitch

Download Datasheet Request Sample

Factory Lead Time (wks): 16 All prices are in USD SPQ: 5000	Quantity	Unit Price	Ext Price	Packaging
	50000	$0.208	$10400	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyEZi

Product StatusActive

RangeHARDWARE

Pitch6.35mm (0.25")

GenderMale

OrientationVertical

Connection TypePC Tail / Throughboard

Current Rating10A

Environmental Ratings-55°C to +125°C

Soldering DataMax Solder Temperature: 260°C for 10 seconds

Termination FinishGold

Weight0.153g

Dimensions7.35 x 1.00 x 9.00

Above Board Height1.00mm

Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

H3161-01

View Details

H3161-05

View Details

H3163-01

View Details

H3163-05

View Details

H3165-01

View Details

H3165-05

View Details

H3169-01

View Details

H3169-05

View Details

H3182-01

View Details

H3182-05

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

D3087-98

View Details

Documents & Media

Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download

Web Address

Web Address

Download

FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

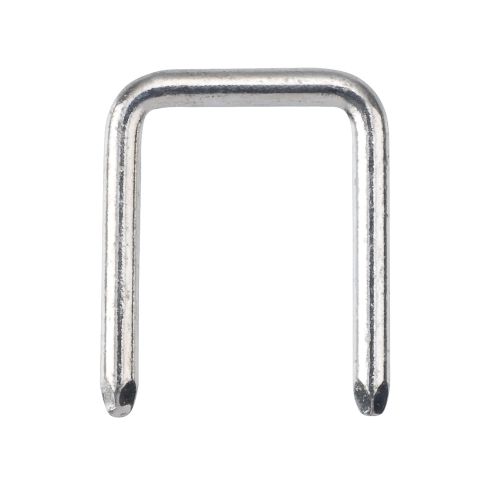

D3081-46
