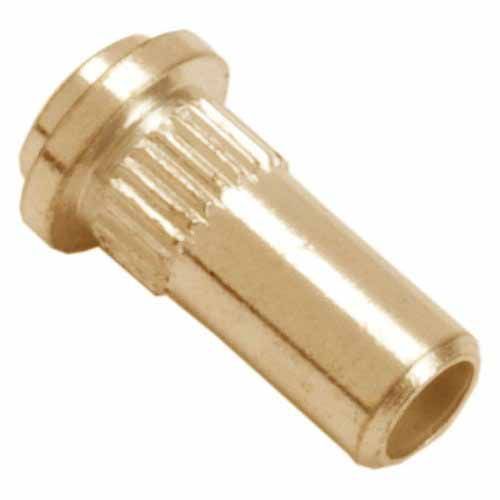

H3169-01

PC Board Socket for Ø1.00mm Pin, retention feature, open-ended, gold clip + tin shell, 0.95mm raised shoulder with 5.05mm body length

Download Datasheet Request Sample

Factory Lead Time (wks): 18 All prices are in USD SPQ: 1000	Quantity	Unit Price	Ext Price	Packaging
	2000	$0.264	$528	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyEZi

Product StatusActive

RangeSOCKETS

GenderFemale

OrientationVertical

Connection TypePC Tail / Throughboard

Current Rating10A max at 25°C, 7.5A max at 85°C

Environmental Ratings-55°C to +125°C

Soldering DataMax Solder Temperature: 260°C for 10 seconds

Termination Finish100% Tin over Nickel

Weight0.117g

Dimensions6.00 x Ø3.18

Above Board Height0.95mm

Mating Pin SizeØ1mm

Pcb MountingPC Tail / Throughboard
