F11-10006042R

FLECTO 0.5mm Pitch Female 60 way Signal+Power (6.80mm)

Download Datasheet Request Sample
In-Stock: 100
Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 400		 Quantity Unit Price Ext Price Packaging
5200 $2.14 $11128 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeFlecto
Pitch0.50mm (0.020")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT) & PC Tail / Throughboard
Number Of Rows2
Number Of Contacts60
Current RatingSignal = 0.5A max per contact; Power = 3A max per contact
Environmental Ratings-55°C to +105°C
Termination FinishGold (signal), 100% Tin over Nickel (power)
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.001g
Dimensions27.20 x 7.60 x 8.15
Above Board Height6.80mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

F11-20006042R

 View Details
Image 1 Image 1

F11-20106042R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

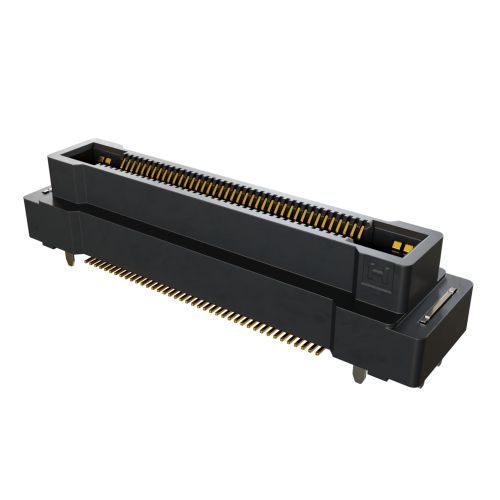

F11-10008042R

 View Details

Documents & Media

Product Datasheet

Product Datasheet

Download

Related Products

Following products can be suitable for the assortments.

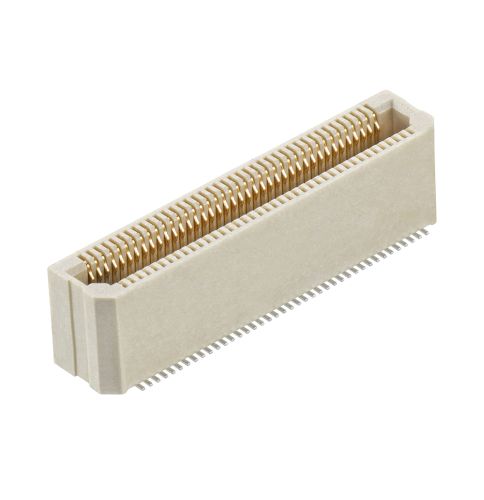

M58-2500842R

View Details

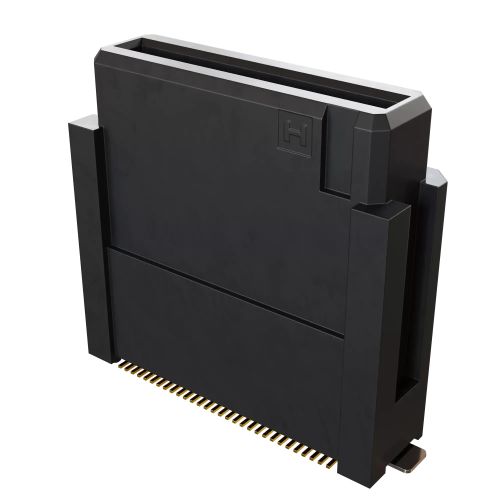

F10-10206045R

View Details

F11-11106042R

View Details
