F11-20106042R

FLECTO 0.5mm Pitch Male 60 way Signal+Power (18.20mm)

Download Datasheet Request Sample
In-Stock: 20
Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 100		 Quantity Unit Price Ext Price Packaging
5000 $2.769 $13845 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeFlecto
Pitch0.50mm (0.020")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT) & PC Tail / Throughboard
Number Of Rows2
Number Of Contacts60
Current RatingSignal = 0.5A max per contact; Power = 3A max per contact
Environmental Ratings-55°C to +105°C
Termination FinishGold (signal), 100% Tin over Nickel (power)
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.846g
Dimensions28.70 x 8.90 x 19.55
Above Board Height18.20mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

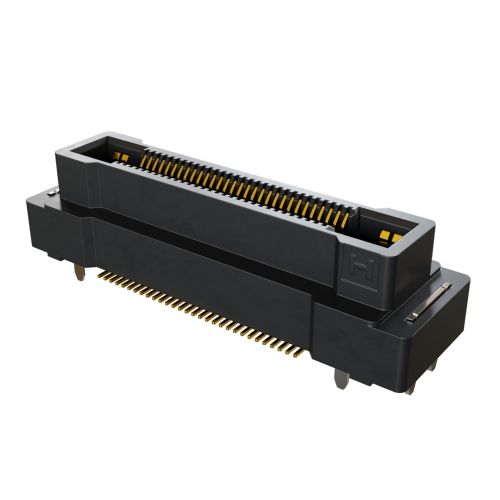

F11-10006042R

 View Details
Image 1 Image 1

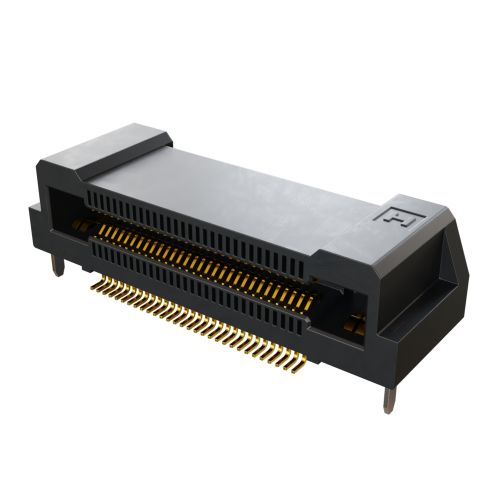

F11-11106042R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

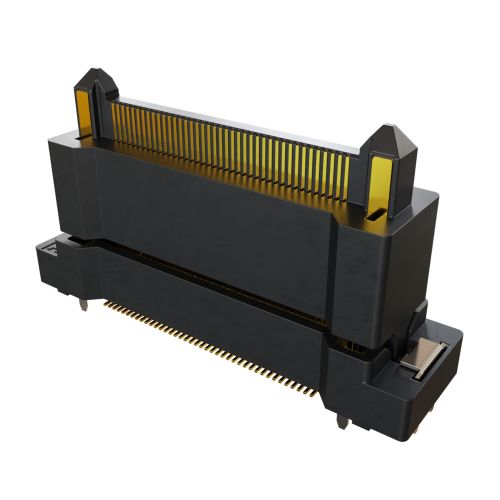

F11-20108042R

 View Details

Documents & Media

Product Datasheet

Product Datasheet

Download

Related Products

Following products can be suitable for the assortments.

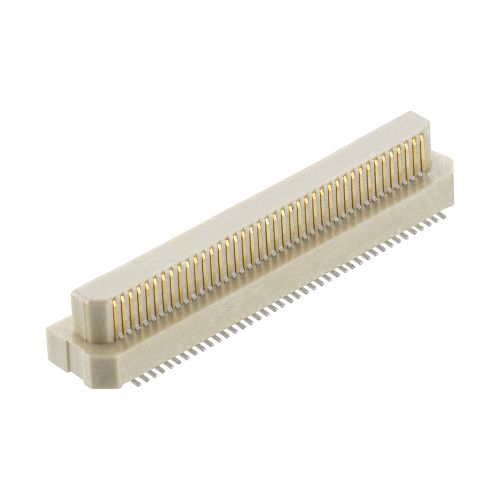

M58-3500842R

View Details

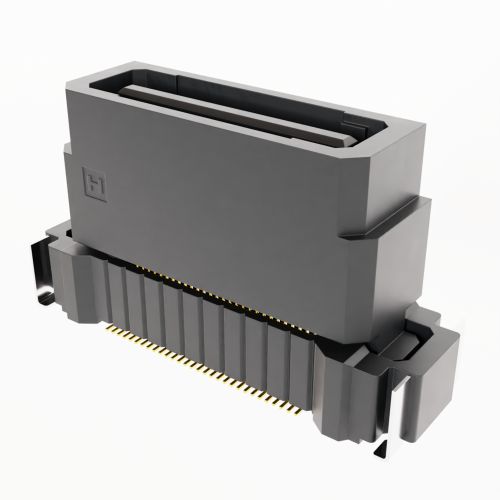

F10-20006045R

View Details

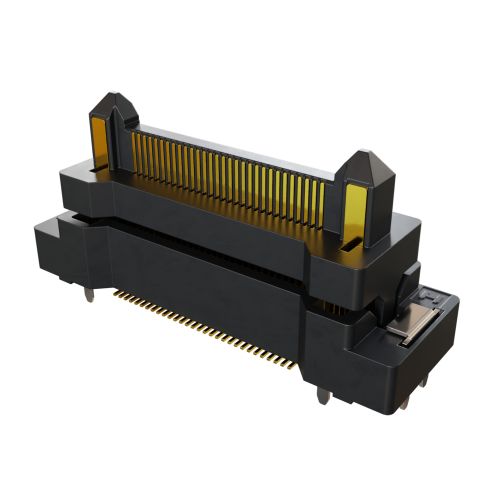

F11-20006042R

View Details
